The collection — six chambers Two families — rigid hard-shell and soft-shell portable 1.3 to 2.0 ATA · sessions of sixty to one-hundred-twenty minutes Delivered DDP — duties, customs, and care included One-year warranty · lifetime service
02 · the collection

Six chambers, two families.

Echelon offers six hyperbaric chambers across two product families — rigid hard-shell chambers (1.5 ATA and 2.0 ATA) for clinics, studios, and the most considered home; and soft-shell portable chambers (1.3 / 1.4 ATA) for daily home practice. Every chamber ships DDP and is built to ISO 9001, ISO 13485, and CE standards.

Meridian / MC4000 — sitting-style soft-shell hyperbaric chamber, 1.3 ATA, with observation portholes.
ECH · MC4000 · 01 / 06 · soft-shell portable

Meridian

Sitting type · 1.3 ATA · 1 person

A roomy sitting chamber with a larger footprint than the Quietus — for the user who wants space to breathe inside a considered home practice. Three-zipper seal, observation window, built-in silencing for quieter operation, and a memory-foam seat with antibacterial cotton/bamboo cover.

  • Three-zipper seal
  • Observation window
  • Single-operator use
  • Emergency dump valve
  • Memory-foam mattress
  • Built-in silencing device
  • Negative-ion module
  • Integrated timing & alarm
pressure1.3 ATA · 4.5 psi · 30 kPa
capacity1 person, sitting
chamber size140 × 130 × 175 cm (W × D × H)
materialIPU polyurethane composite
machine size76 × 42 × 72 cm (L × W × H)
input flow70 L / min
input power1280 W
voltage220 V / 50 Hz
net weight≈ 20 kg
oxygen93% via concentrator + mask
Inquire about Meridian → How it's used
Atlas / ST2200 — sit-or-lie soft-shell hyperbaric chamber, 1.3 / 1.4 ATA, with internal metal frame.
ECH · ST2200 · 02 / 06 · soft-shell portable

Atlas

Sit or lie · 1.3 / 1.4 ATA · 1 person

A flexible chamber that accommodates sitting (with optional adjustable folding chair) or lying. Three-zipper seal for a confident pressure hold, full nylon protective cover, and an internal metal frame so the chamber holds its shape when deflated — set-up and storage stay straightforward.

  • Three-zipper seal
  • Sit or lie configuration
  • Optional folding chair
  • Full nylon protective cover
  • Internal metal frame
  • Single-operator use
  • Emergency dump valve
  • Internal pressure gauge
pressure1.3 / 1.4 ATA
capacity1 person · sit or lie
materialTPU + nylon protective cover
oxygen93% via concentrator + mask
configurationSitting (folding chair) or lying
specs noteDetailed dimensions confirmed at quote
Inquire about Atlas → How it's used

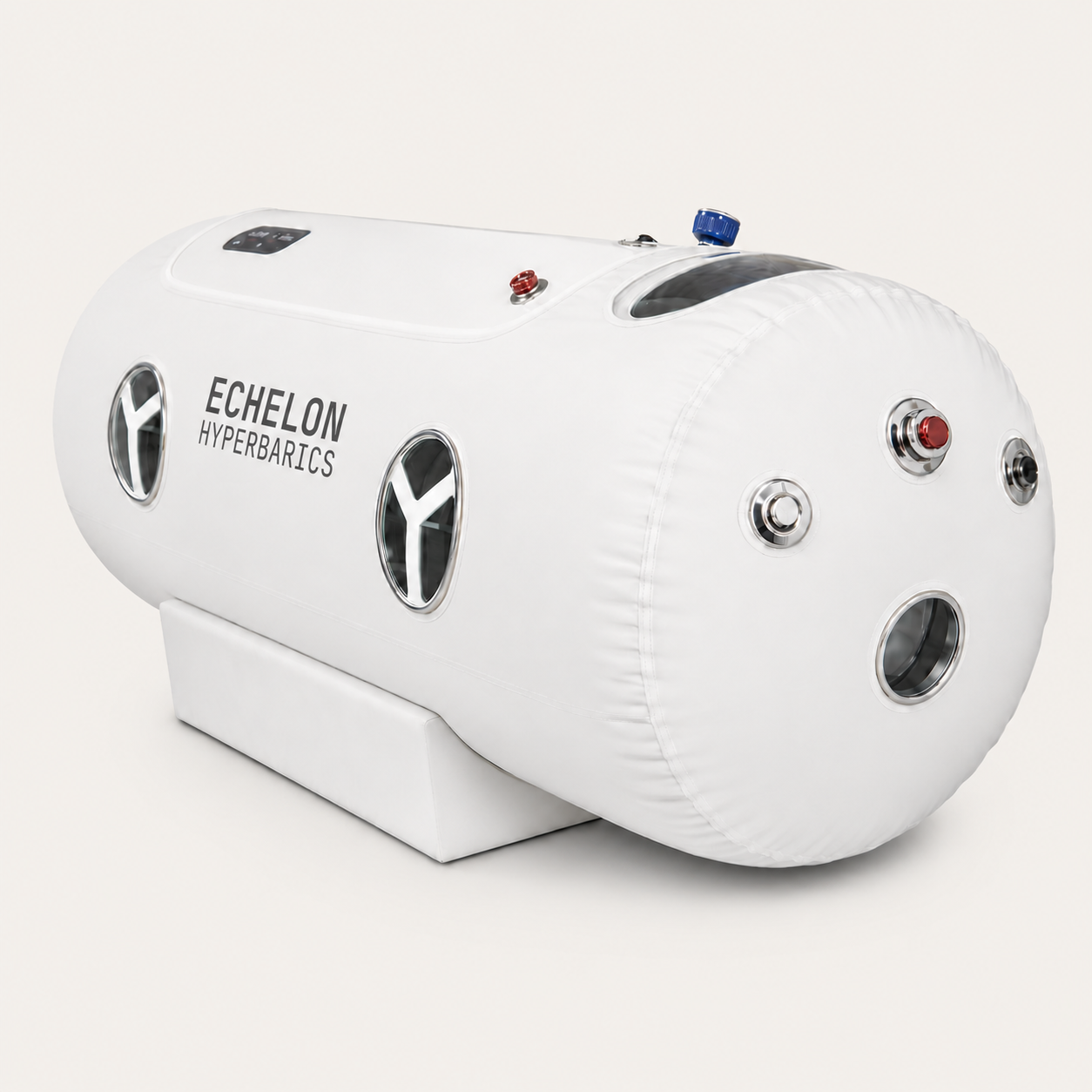

Solace / ST801 — lying-style soft-shell hyperbaric chamber, 1.3 ATA, with five large viewing windows.
ECH · ST801 · 03 / 06 · soft-shell portable · most popular

Solace

Lying type · 1.3 ATA · 1 person

The most popular portable model — a lying chamber on a TPU capsule with a high-strength cotton protective cover. Five large transparent viewing windows mitigate claustrophobia. A memory-foam mattress with antibacterial cotton/bamboo cover and a quiet, oil-free air compressor paired with a PSA oxygen concentrator keep the practice comfortable.

  • Three-zipper seal
  • 5 large viewing windows
  • Cover available in multiple colors
  • Memory-foam mattress
  • Oil-free quiet compressor
  • PSA oxygen concentrator
  • Internal pressure gauge
  • Emergency dump valve
pressure1.3 ATA · 4.4 psi
capacity1 person, lying
size (Ø × L)80 × 225 cm
materialTPU capsule + cotton protective cover
weight≈ 13 kg
compressor72 L/min · oil-free, dual carbon filters
oxygen1–5 L/min PSA · 95% via mask
protocol1–2 hr · 5–7×/week
Inquire about Solace → How it's used
Cirrus / HP2202 — rigid hard-shell hyperbaric chamber, 2.0 ATA, with integrated control panel.
ECH · HP2202 · 04 / 06 · rigid hard-shell · 2.0 ATA

Cirrus

Hard-shell rigid · 2.0 ATA · 1 – 2 person (by variant)

A higher-pressure rigid chamber for the studio, the private clinic, and the most considered home. Stainless-steel shell with a special polycarbonate coating. Power on, step inside, press to begin. Sliding-door entry, integrated intercom and alarm, LED interior lighting, and a fully telemetered exterior panel for pressure, temperature, humidity, and oxygen percentage.

  • 2.0 ATA working pressure
  • Sliding-door entry
  • Stainless-steel + PC coating
  • Integrated compressor & concentrator
  • 95% O₂ via optional mask
  • Intercom & alarm system
  • LED interior lighting + wheels
  • Full external readouts
pressure2.0 ATA
capacity1 – 2 person (by variant: 75 / 85 / 90)
dimensions75 / 85 / 90 × 220 cm (W × L)
weight150 / 180 / 200 kg
voltage110 / 220 V (configurable)
air flow70 L / minute
oxygen flow5 or 10 L / minute
protocol90 – 120 min · once daily · 5×/week
Inquire about Cirrus → How it's used

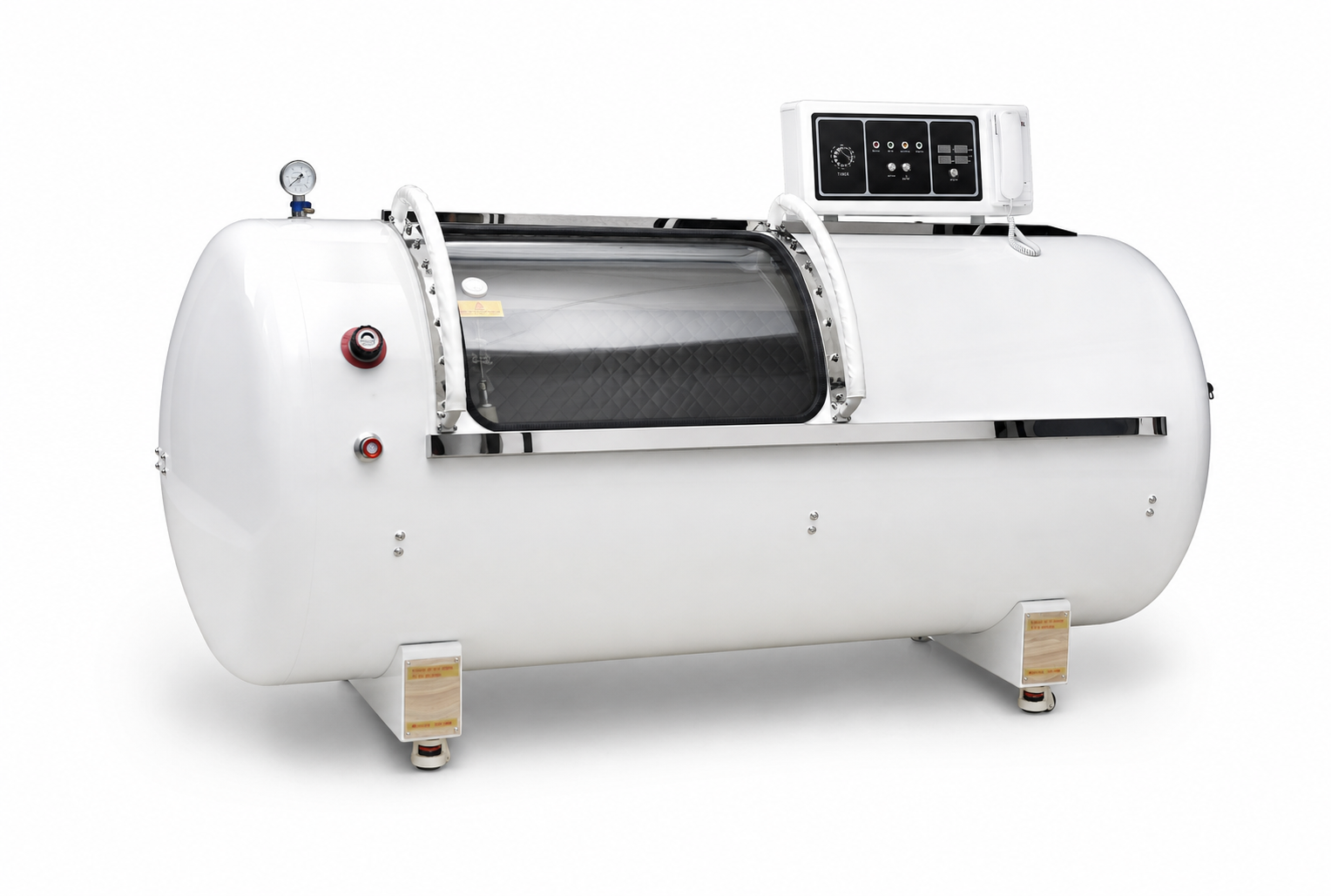

Vespers / HP1501 — rigid hard-shell hyperbaric chamber, 1.5 ATA, with integrated control panel.
ECH · HP1501 · 05 / 06 · rigid hard-shell · 1.5 ATA

Vespers

Hard-shell rigid · 1.5 ATA (7 psi) · 1 – 2 person (by variant)

A premium rigid chamber at a calmer working pressure than Cirrus. Sliding polycarbonate door — pressure-activated, with automatic release on depressurization. Adjustable session timer (60–120 minutes or unlimited), dual interior + exterior pressure gauges, intercom phone for two-way communication, and a 3D high-elastic mattress with anti-virus, moisture-proof construction.

  • 1.5 ATA working pressure
  • Sliding polycarbonate door
  • Auto-release on depressurization
  • Emergency relief: full vent in < 45 seconds
  • Intercom phone
  • 3D high-elastic mattress
  • Adjustable timer 60–120 min
  • Optional in-chamber air conditioning
pressure1.5 ATA · 7 psi
capacity1 – 2 person (by variant: 75 / 85 / 90)
dimensions75 / 85 / 90 × 220 cm (W × L)
weight150 / 160 / 170 kg
voltage110 / 220 V (configurable)
air flow80 L / minute
oxygen95% via optional mask · 5 L/min
protocol90 – 120 min · once daily · 5×/week
Inquire about Vespers → How it's used

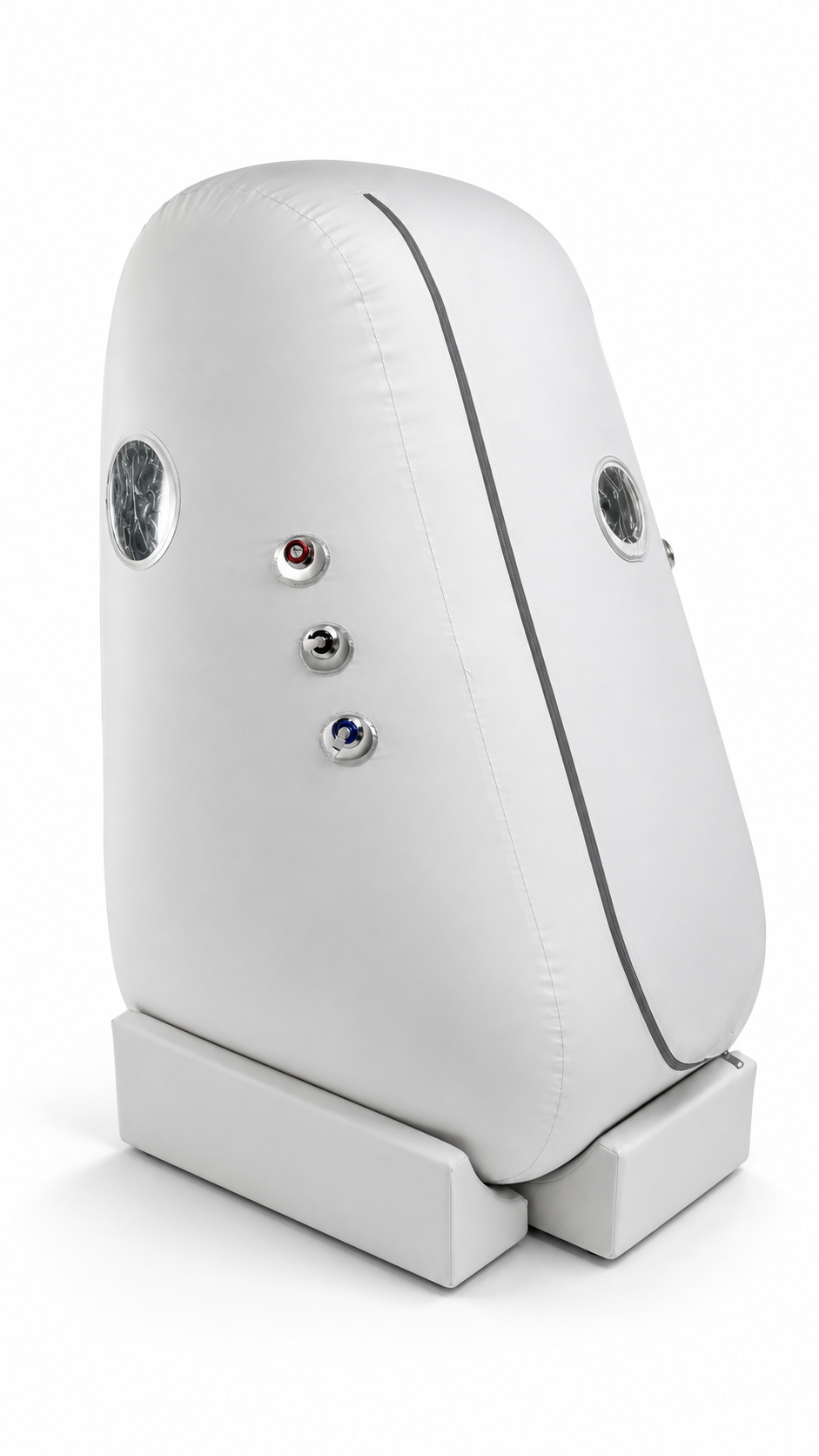

Quietus / L1 — vertical sitting-style soft-shell hyperbaric chamber, 1.3 ATA, single user.
ECH · L1 · 06 / 06 · soft-shell portable · most economical

Quietus

Single sitting portable · 1.3 ATA · 1 person

The most economical portable in the collection — a vertical, sitting-style chamber with a minimal footprint for the home or a small studio. The "L"-shaped zipper makes entry simple, and the chamber is built for single-operator use.

  • L-shaped zipper entry
  • Vertical sitting design
  • Single-operator use
  • Emergency dump valve
  • Internal pressure gauge
  • Integrated timing & alarm
  • Negative-ion module
  • 93% O₂ via headset / mask
pressure1.3 ATA · 4.5 psi · 30 kPa
capacity1 person, sitting
chamber size140 × 100 × 160 cm (W × D × H)
materialIPU polyurethane composite
machine size76 × 42 × 72 cm
input flow70 L / min
input power1280 W
voltage220 V / 50 Hz
net weight≈ 13 kg
Inquire about Quietus → How it's used
begin

A chamber is chosen.

A consultation takes thirty minutes. We'll walk through the room, the use, and the right chamber.

Request a consultation →
